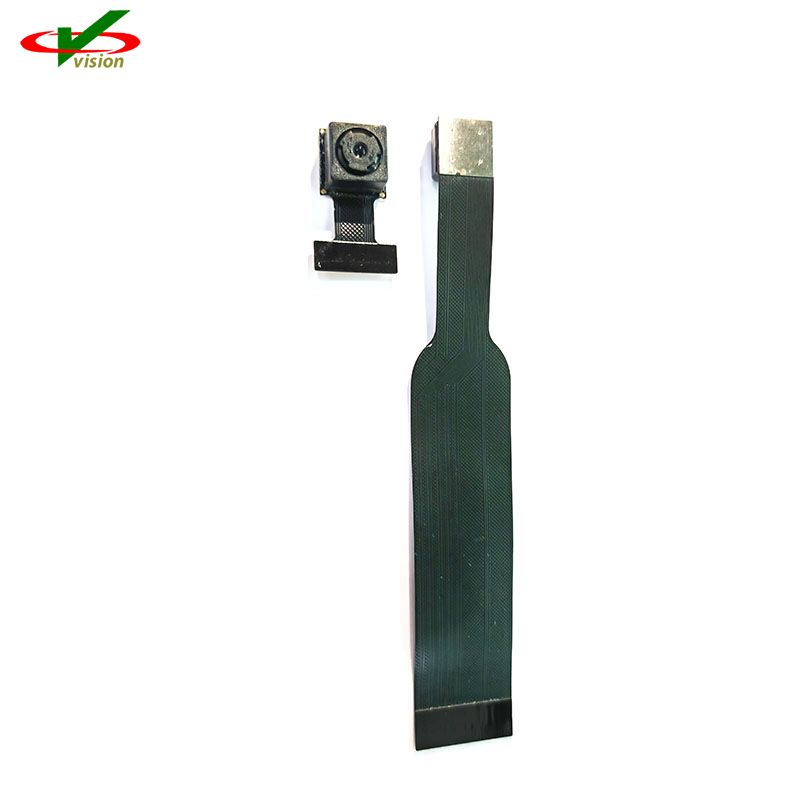

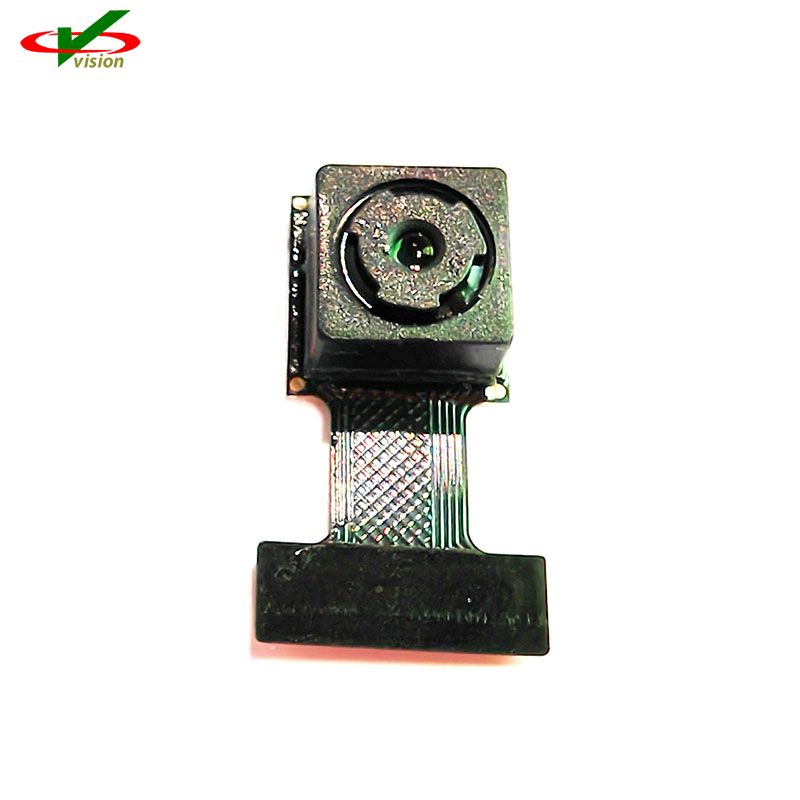

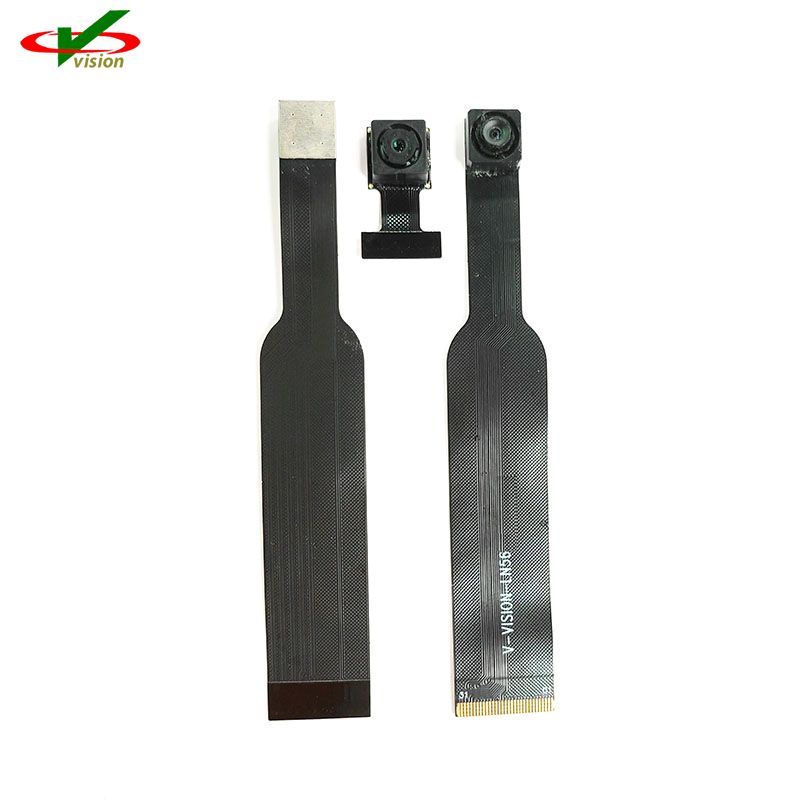

Ang Omnivision's Auto Focus OV8856 OV8865 Camera Module ay isang bagong 1/4inch 8mega pixel PureCel sensor na idinisenyo para sa mga application ng camera na nakaharap sa harap at likuran sa mga pangunahing mobile device.
Itinayo sa advanced na 1.12-micron pixel architecture, ang sobrang compact na OV8856 ay nag-aalok ng nangunguna sa industriya na kalidad ng imahe at pinahusay na performance kung ihahambing sa mga nakaraang henerasyong 8megapixel image sensors.
Ang Auto Focus OV8856 OV8865 Camera Module ay isa sa pinakamaliit na 8megapixel sensor sa merkado, at humigit-kumulang 15 porsiyentong mas maliit kaysa sa nakaraang henerasyon ng Omniviison na ov8856 images sensor.
Ang ov8856 ay maaaring magkasya sa isang 6.5mmx6.5mm fixed focus module na may z-taas na humigit-kumulang 4mm.
◆Aktibong laki ng array: 3264x2448
◆Suplay ng kuryente:
analog: 2.6~3.0V (2.8V nominal)
core: 1.14~1.26V (1.2V nominal)
I/O: 1.7~1.9V (1.8V)
◆ Mga kinakailangan sa kuryente:
aktibo: TBD
standby: TBD
XSHUTDN: 0.3μW
◆ Saklaw ng temperatura:
operating: -30 ℃ hanggang + 85 ℃ temperatura ng junction
matatag na imahe: 0 ℃ hanggang +60 ℃ temperatura ng junction
◆ Mga interface ng output: hanggang 4-lane MIPI serial output
◆ Mga format ng output: 10-bit RGB RAW
◆ Laki ng lens: 1/4"
◆ Input na dalas ng orasan: 6~27 MHz
◆ Pinakamataas na rate ng paglilipat ng larawan:
3264x2448: 30fps
3264x1836: 30fps
2112x1188: 60fps
1920x1080: 60fps
◆ Scan mode: progresibo
◆ Laki ng pixel: 1.12μm x1.12μm
◆ Lugar ng larawan: 3678.336μm x 2767.68μm
◆ mga cellular phone
◆ PC multimedia
◆ mga tablet
